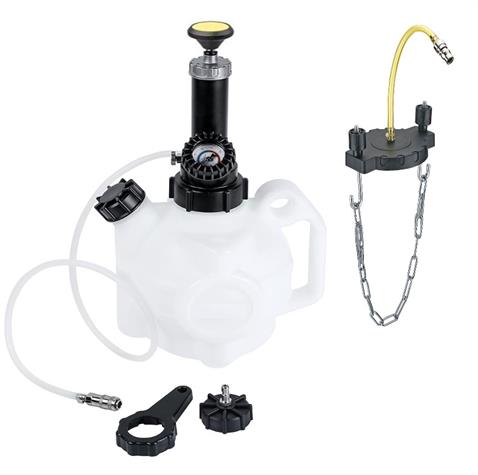

Manual Pressure Brake Fluid Bleeder

Filling Procedure

1. Make sure no pressure remains inside the unit. Pressure can berelease from the release valve by the side of the pump.

2. Remove new fluid cap on top of the unit, and fill the unit withnew brake fluid. Make sure no remaining old fluid or debris in thetank.

Operating Instruction

1. Selectsuitable adaptor from the selection providedwith the unit.Install adaptorto the master cylinder of the brake system.

2. Pump handle of the unit until reach recommended bleedingpressure. Open brakenipple andconnect to suitablebleeding container.Once seeing the new fluid coming into the container, close the nipple.Repeat process on all 4 wheels (in any order).

3. Once the process is complete, release the pressure by pressingdown the release valve by the side of the pump. After releasing, disconnectfluid supply hose with adaptor on the master cylinder.

   Note: Do notdisconnect the adaptor before releasing the pressure.

4. If necessary, adjust brake fluid level in the master cylinder.Replace the master cylinder cap on the vehicle.

5. Dispose waste brake fluid in bleeding container safely..

   Safety Caution: Aftereach service, air pressure must be released via pressure release valve(1).
